Furman ASD-120 2.0 6-Channel Power Distributor

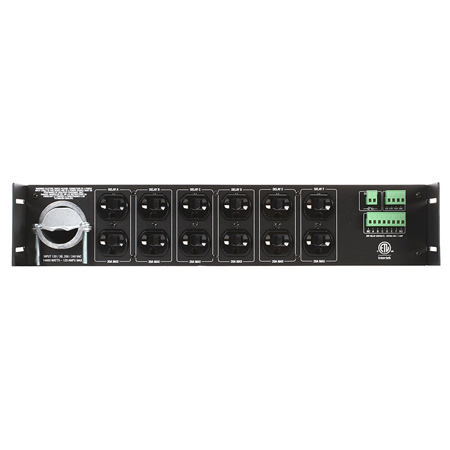

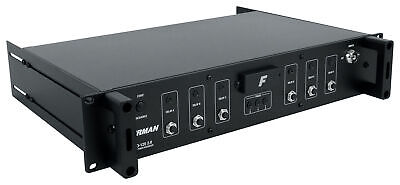

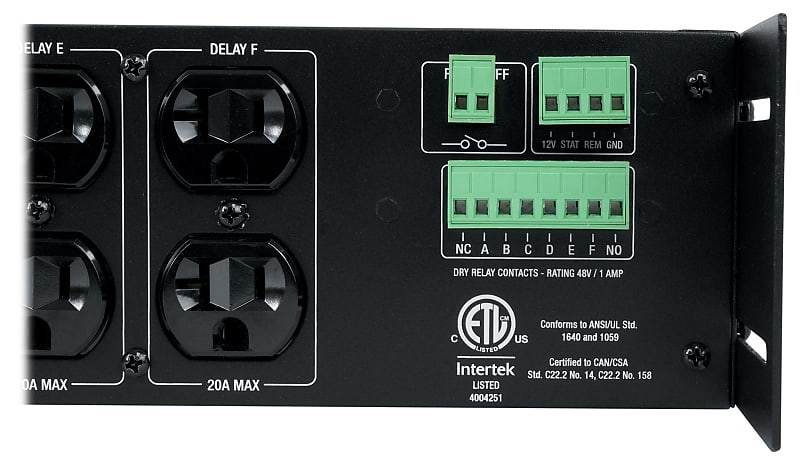

120 amp Sequenced Power Distro, (6) 20 amp 120 volt circuits. The ASD-120 2.0 is a six channel power sequencing device intended for use in installations where multiple electrical loads must be powered on and off in a delayed and orderly sequence. Typical applications for the ASD-120 2.0 include: touring PA or sound reinforcement systems, musical or theatrical acts, mobile recording facilities, and on-location film or video shoots. 120 amp 120 volt AC sequenced distro and controller. Six Independent 20 amp circuits @ 120V - 120 amp total load capacity. Six delay banks with rear panel NEMA 5-20R duplex outlets and optically isolated DC relay outlets Front panel status power LED. Bypass Switch and Circuit Breaker for each Delay Bank 120A power distribution block accommodates 120V/240V single phase, or 120/208-Y three phase power X Y Z Status LED confidence indicators for each Input Phase Sequence unit ON or OFF from front panel or by remote switch Independent three position switches to power sequence (SEQ) or Bypassed ON or OFF each Bank Adjustable Delay with up to 7 Minute Interval between Banks. 120 amp Sequenced Power Distro Selectable between 120 volt single phase, 240 volt single phase or 208 volt 3-phase Electrical certification CET US
